Chapter 7: Circuit Designs and Sequential Circuits

In this chapter, we introduce the most commonly used building blocks: multiplexer, decoder, and encoder. The outputs of these combinational logic circuits depend on current input values, hiding the unnecessary gate-level details to emphasize the function of the building block. This chapter also introduces sequential logic circuits, which outputs depend on both current and prior values.

Objectives

By the end of this chapter you should be able to:

  • Demonstrate knowledge of multiplexer, decoder, and encoder
  • Simplify the Boolean equation with k-map
  • Design combinational logic circuits with logic gates
  • Differentiate combinational logic circuits and sequential logic circuits
  • Recall basic knowledge of SR latch: set, reset, memory and invalid state
  • Evaluate internal circuit operations of D latch and D flip-flop

7.1 Combinational Circuit Design

Multiplexer

A multiplexer (or Mux), also known as a data selector, is a device that selects one among N analog or digital inputs and forwards the selected input to a single output line. If the mux has N inputs, it needs log subscript 2 N control inputs. For example, if the mux has the two inputs, it needs a log subscript 2 2 ( = 1) control input. The following figure shows 2-to-1 multiplexer which has two inputs (D0 and D1), one output (Y), and a control input (S).

Fig. ‑. 2-to-1 Multiplexer

If the control input S is 0, the input D0 is forwarded to the output Y. If the control input S is 1, the input D1 is forwarded to the output Y. The following table describes the 2-to-1 multiplexer.

Table ‑. Truth Table of 2-to-1 Multiplexer

S

D1

D0

Y

0

0

0

0

0

0

1

1

0

1

0

0

0

1

1

1

1

0

0

0

1

0

1

0

1

1

0

1

1

1

1

1

From the above table, we can notice that the value of the output Y is determined by two inputs, D1 and D0, and the control input S. Let’s draw K-map to simplify the Boolean equation in terms of the output Y, as shown in Fig. 7-2.

Fig. ‑. 2-to-1 Multiplexer

The simplified equation is Y equals D subscript 0 top enclose S blank plus D subscript 1 S which allows us to design logic gates for 2-to-1 multiplexer. For the multiplexer design, there needs two AND gates and one OR gate in the block of Fig. 7-1.

Fig. ‑. 2-to-1 Multiplexer

As shown in Fig. 7-3, AND1 gate has two inputs, D1 and S, whereas AND2 gate has two inputs, D0 and top enclose S. The two outputs of the AND gates are fed into the OR gate which produces the output Y.

Decoder

The decoder translates the binary value into a decimal value. Fig. 7-4 shows a block diagram of 2-bit binary decoder. The 2-to-4 decoder has two inputs A1 and A0, and four outputs Y3, Y2, Y1 and Y0. Depending on the binary inputs A1 and A0, only one output will be TRUE and the other outputs will be FALSE. For example, if the binary inputs A1A0 is equal to ‘11’, only one output Y3 is TRUE and the other outputs Y2 Y1 Y0 are all FALSE.

Fig. ‑. Block Diagram of 2-bit Binary Decoder

The following table shows the truth table of the decoder.

Table ‑. Truth Table of 2-bit Binary Decoder

A1

A0

Y3

Y2

Y1

Y0

0

0

0

0

0

1

0

1

0

0

1

0

1

0

0

1

0

0

1

1

1

0

0

0

The truth table of 2-to-4 binary decoder can be mapped to K-map and we can describe the output variables in terms of input variables.

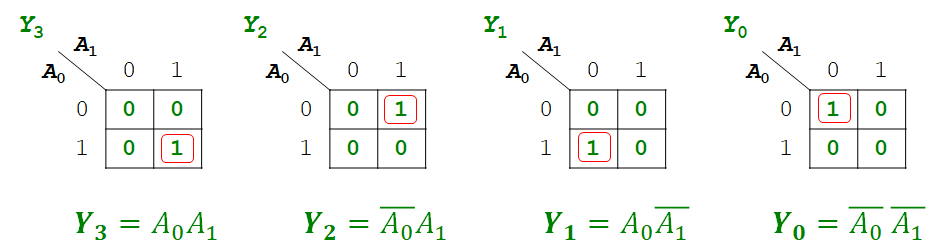

Fig. ‑. K-Map Representation of 2-bit Binary Decoder

Each output value was expressed with input variables, as shown in the above figure. We can fill the box of Fig. 7-4 with a combinational circuit of 2-bit binary decoder in the following figure:

Fig. ‑. Combinational Circuit of 2-bit Binary Decoder

The 2-to-4 binary decoder has two inputs (A1, A0) and four outputs (Y3, Y2, Y1, and Y0). There are four AND gates and two NOT logic gates in the block.

  • AND3 gate produces the output Y3 with two inputs, A subscript 0 and A subscript 1.
  • AND2 gate produces the output Y2 with two inputs, top enclose A subscript 0 and A subscript 1.
  • AND1 gate produces the output Y1 with two inputs, A subscript 0 and top enclose A subscript 1.
  • AND0 gate produces the output Y0 with two inputs, top enclose A subscript 0 and top enclose A subscript 1.

Encoder

The encoder is the inverse operation of a decoder. The operation is like the keyboard. Only one input is TURE (press only one button) and the others are FALSE. It generates the binary code corresponding to the input value. A 4-to-2 encoder has four inputs D3 D2 D1 D0 and two binary outputs B1 B0, as shown in Fig. 7-7. Only one input is TRUE and the other inputs are FALSE. For example, if the input D3 is TRUE and the others are FALSE, it generates the corresponding binary code B1 B0 = 11.

Fig. ‑. 4-to-2 Encoder

The following table describe the operation of the 4-to-2 encoder.

Table ‑. Truth Table of 4-to-2 Encoder

Inputs

Outputs

D3

D2

D1

D0

B1

B0

0

0

0

1

0

0

0

0

1

0

0

1

0

1

0

0

1

0

1

0

0

0

1

1

From the above table, we can notice that the outputs B1 and B0 are determined by four inputs, D3, D2, D1 and D0, respectively. Using the truth table of the encoder, we can create K-map which can simplify the Boolean equation for the encoder.

To simplify the Boolean equation of the output B1, we have the following Boolean values:

  • If the inputs D3 D2 D1 D0 are equal to ‘0 0 0 1’, the output B1 = 0
  • If the inputs D3 D2 D1 D0 are equal to ‘0 0 1 0’, the output B1 = 0
  • If the inputs D3 D2 D1 D0 are equal to ‘0 1 0 0’, the output B1 = 1
  • If the inputs D3 D2 D1 D0 are equal to ‘1 0 0 0’, the output B1 = 1

To simplify the Boolean equation of the output B0, we have the following Boolean values:

  • If the inputs D3 D2 D1 D0 are equal to ‘0 0 0 1’, the output B0 = 0
  • If the inputs D3 D2 D1 D0 are equal to ‘0 0 1 0’, the output B0 = 1
  • If the inputs D3 D2 D1 D0 are equal to ‘0 1 0 0’, the output B0 = 0
  • If the inputs D3 D2 D1 D0 are equal to ‘1 0 0 0’, the output B0 = 1

The following figure shows the K-map representation of 4-to-2 encoder.

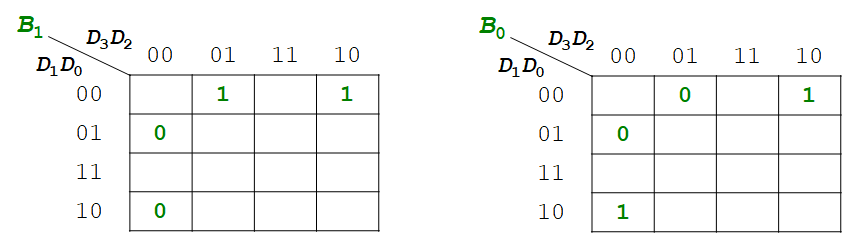

Fig. ‑. K-map Representation of 4-to-2 Encoder with Empty Cells

The empty cells will be filled out with X (don’t care) notation, because we don’t care the outputs B1 and B0 (either 0 or 1) when the other input combinations of D3 D2 D1 D0 are fed into the encoder. It seems like the case when you pressed more than two buttons simultaneously.

The K-map simplifies the Boolean equation of B1 and B0, as shown in Fig. 7-9. We can get the simplified equation as follows:

  • B1 = D3 + D2
  • B0 = D3 + D1

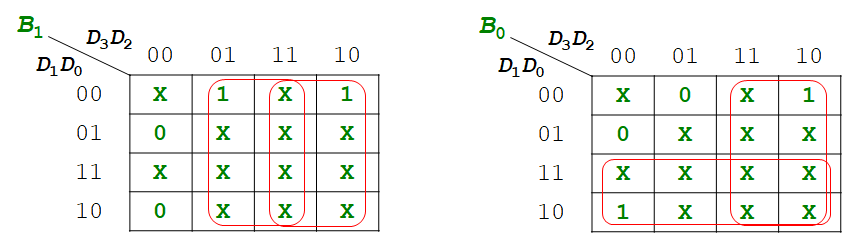

Fig. ‑. K-map Representation of 4-to-2 Encoder with X (don’t care) Notation

Let’s design logic gates for the encoder using the above figure:

Fig. ‑. Designed Encoder with logic gates

4-to-2 encoder has four inputs, i.e. D3, D2, D1, D0, and two outputs (binary code), i.e. B1 and B0. There are two OR gates in the block.

  • OR1 gate has two inputs, D2 and D3, and produces the output B1.
  • OR0 gate has two inputs, D1 and D0, and produces the output B0.

7.2 Sequential Circuits

So far, we take a look at the combinational circuit, in which the output is independent of time and only relies on the current input at that particular instant. On the other hand, the sequential circuit is the type of circuit where output not only relies on the current input but also depends on the previous output. The sequential circuit consists of a combinational circuit and storage elements. The previous input/output values are stored in storage elements.

Fig. ‑. Sequential Circuit

As shown in the above figure, the inputs directly are fed into the combinational circuit block. The combinational circuit produces outputs with current and prior input values. Some states of the combinational circuit are stored in memory elements, e.g. Flip-flops, which will be used as the prior input values. Storage elements maintain a binary state indefinitely as long as power is delivered to the circuit. There are two types of the storage elements: 1) Latch – operated with signal levels, and 2) Flip-Flop – controlled by a clock transition.

SR Latch

SR latch is the most fundamental building block using static gates, where S and R stand for set and reset. SR latch can be designed with two NOR gates. The inputs S and R are fed into each NOR gate, and the output of one NOR gate recursively is fed into the input of the other NOR gate, as shown below:

Fig. ‑. SR Latch

The outputs Q and top enclose Q represent the value of the stored state and its complement, respectively. In SR latch, there are four possible input cases:

  • Case 1: S = 1, R = 0

Let’s look at the case when the inputs S = 1 and R = 0. The ‘1’ bit is the dominant input of the NOR gate. Since one of the inputs, S = 1, is TRUE, the NOR gate (N2) produces the output FALSE which is fed into one of the inputs in the other NOR gate (N1). Both two inputs of the NOR gate N1 are FALSE and the NOR gate N1 produces the output TRUE.

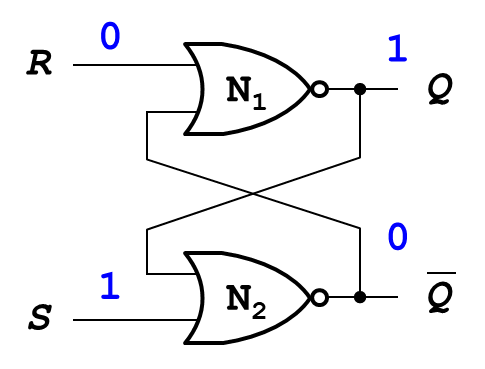

Fig. ‑. SR Latch When the inputs S = 1 and R = 0

  • Case 2: S = 0, R = 1

Let’s look at the case when the inputs S = 0 and R = 1. The ‘1’ bit is the dominant input of the NOR gate. Since one of the inputs, R = 1, is TRUE, the NOR gate (N1) produces the output FALSE which is fed into one of the inputs in the other NOR gate (N2). Both two inputs of the NOR gate N2 are FALSE and the NOR gate N2 produces the output TRUE.

Fig. ‑. SR Latch When the inputs S = 0 and R = 1

  • Case 3: S = 0, R = 0

Let’s look at the case when both inputs S and R are FALSE. Since both of inputs are FALSE, we need to consider the case whether the previous output Q subscript p r e v end subscript is FALSE or TRUE. In the former case when the previous output Q subscript p r e v end subscript is FALSE, both inputs of the NOR gate N2 are FALSE and the gate produces the output TRUE. Both inputs of the other NOR gate N1 has TRUE and FALSE, the gate produces the output FALSE. In the latter case when the previous output Q subscript p r e v end subscript is TRUE, both inputs of the NOR gate N1 are FALSE and the gate produces the output TRUE. Both inputs of the other NOR gate N2 has TRUE and FALSE, the gate produces the output FALSE.

Fig. ‑. SR Latch When the inputs S = 0 and R = 0

In summary, if the inputs S = 0, R = 0, and Q subscript p r e v end subscript equals 0, then the output Q equals 0. If the inputs S = 0, R = 0, and Q subscript p r e v end subscript equals 1, then the output Q equals 1. In this case, the latch memorizes the previous state.

  • Case 4: S = 1, R = 1

Let’s look at the case when both inputs S and R are TRUE. Both NOR gates have a dominant input ‘1’ and both outputs Q and top enclose Q are equal to 0. This is an invalid state. The values of Q and top enclose Q should be different. We should avoid this state.

Fig. ‑. SR Latch When the inputs S = 1 and R = 1

SR latch stores one bit of state (Q). The following figure shows the SR latch symbol.

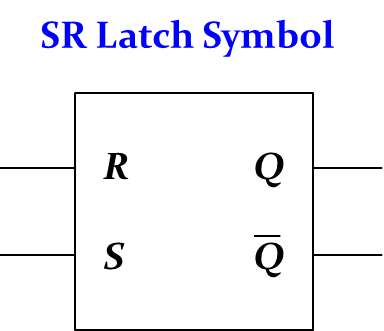

Fig. ‑. SR Latch Symbol

D Latch

SR latch has an invalid state. We must do something to avoid the invalid state. D latch allows us to avoid this invalid state, where the D latch has two inputs CLK and D. The CLK input controls when the output changes, and the data input D controls what the output changes to. The function of D latch is as follows:

  • When CLK = 1, D passes through to Q: called it a state of “transparent”
  • When CLK = 0, Q holds its previous value: called it a state of “opaque”

(a) Internal Circuit

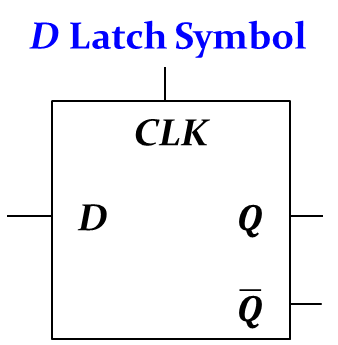

(b) Symbol

Fig. ‑. D Latch, (a) Internal circuit and (b) Symbol

As shown in the above figure, D Latch Internal Circuit consists of NOT gate, two AND gates, and SR latch. There are two inputs, CLK and D, and two outputs Q and top enclose Q. The inputs, CLK and top enclose D, are fed into one AND gate, and the gate produces the internal value R. On the other hand, the inputs, CLK and D, are fed into the other AND gate, and the gate produces the internal value S. The following table summarizes the internal states of the D latch.

Table ‑. Internal States of D Latch

CLK

D

top enclose D

S

R

bold italic Q

top enclose Q

0

X

top enclose X

0

0

Q subscript p r e v end subscript

top enclose Q subscript p r e v end subscript

1

0

1

0

1

0

1

1

1

0

1

0

1

0

  • If CLK = 0, both of AND gates produce “0”. That means two internal inputs S and R are “0”. The latch produces Q subscript p r e v end subscript and top enclose Q subscript p r e v end subscript, meaning that the current output Q is equal to Q subscript p r e v end subscript.
  • If CLK = 1 and D = 0, the internal input S has a value of “0” and the internal input R has a value of “1”. The latch produces Q equals 0 and top enclose Q equals 1.
  • If CLK = 1 and D = 1, the internal input S has a value of “1” and the internal input R has a value of “0”. The latch produces Q equals 1 and top enclose Q equals 0.

The way to respond to the clock signal is slightly different in Latch and Flip-Flop. The latch updates its state when the clock level is positive, as shown in the following figure:

Fig. ‑. Latch Respond to Positive Level

On the other hand, the flip-flop updates its state when the clock level is in a transitional state, i.e. edge triggered, as shown in the following figure:

Fig. ‑. Flip-Flop Respond to Positive or negative-edge in the Clock Cycle

That means that the flip-flop changes the state when the clock level is changed from low to high, referred to as a positive-edge response, or from high to low, referred to as a negative-edge response.

D Flip-Flop

The D flip-flop is created by connecting two gated D latches serially, and inverting the CLK input to one of them. There are two inputs, CLK and D, and it produces the output values Q and top enclose Q. The following figure shows the symbols of D flip-flop.

Fig. ‑. D Flip-Flop Symbols

In D flip-flop, D (data) passes through to Q when CLK rises from 0 to 1 (or from 1 to 0); otherwise, Q holds its previous value. Q value changes only on rising edge of CLK (from 0 to 1), called edge-triggered, which was represented in the inverted triangle of the above figure.

The internal circuit of D Flip-flop composes of two latches (L1: Master, and L2: Slave) and NOT gate, as shown in the following figure:

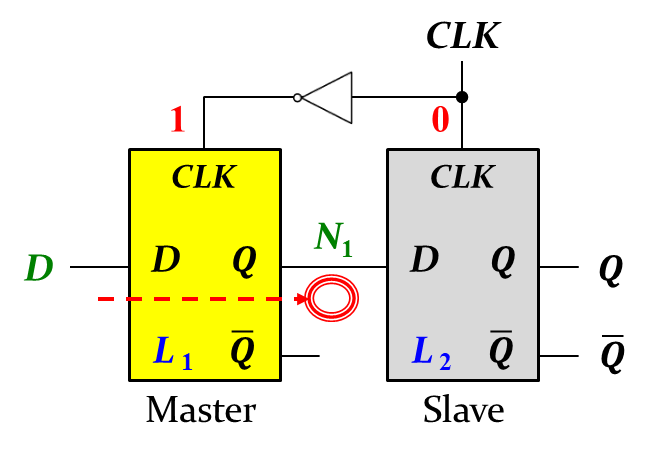

Fig. ‑. D Flip-Flop Internal Circuit – Master Enabled

CLK value is directly fed into L2, but connected to L1 after flipping CLK with NOT gate. The input D is directly fed into L1. The output Q of L1 is directly connected to the internal input N1 of L2. When the CLK value is zero, L1 Latch is enabled (transparent) and the input D value can pass through L1. On the other hand, L2 Latch is disabled (opaque) and the internal input N1 cannot pass through L2.

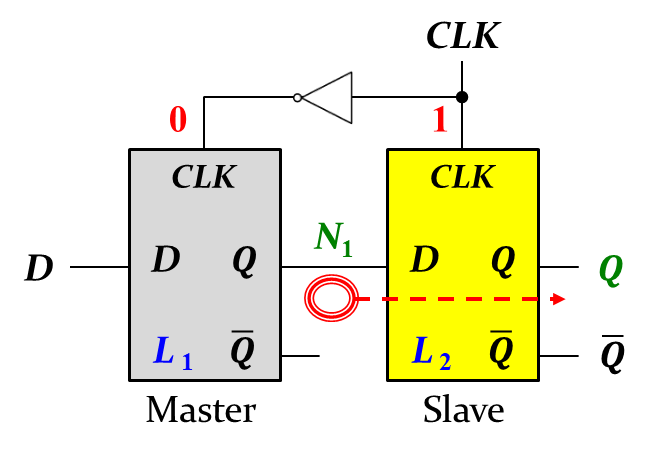

Fig. ‑. D Flip-Flop Internal Circuit – Slave Enabled

When the CLK value is one, L2 Latch (Slave) is enabled (transparent) and the internal input N1 can pass through L2. On the other hand, L1 Latch (Master) is disabled (opaque) and the input D cannot pass through L1, as shown in the above figure.

Thus, when the CLK value rises from 0 to 1 (on the edge of the clock), the D value passes through Q value.

Since D flip-flop keeps one-bit information, we can design a 4-bit register with four D flip-flops, as follows:

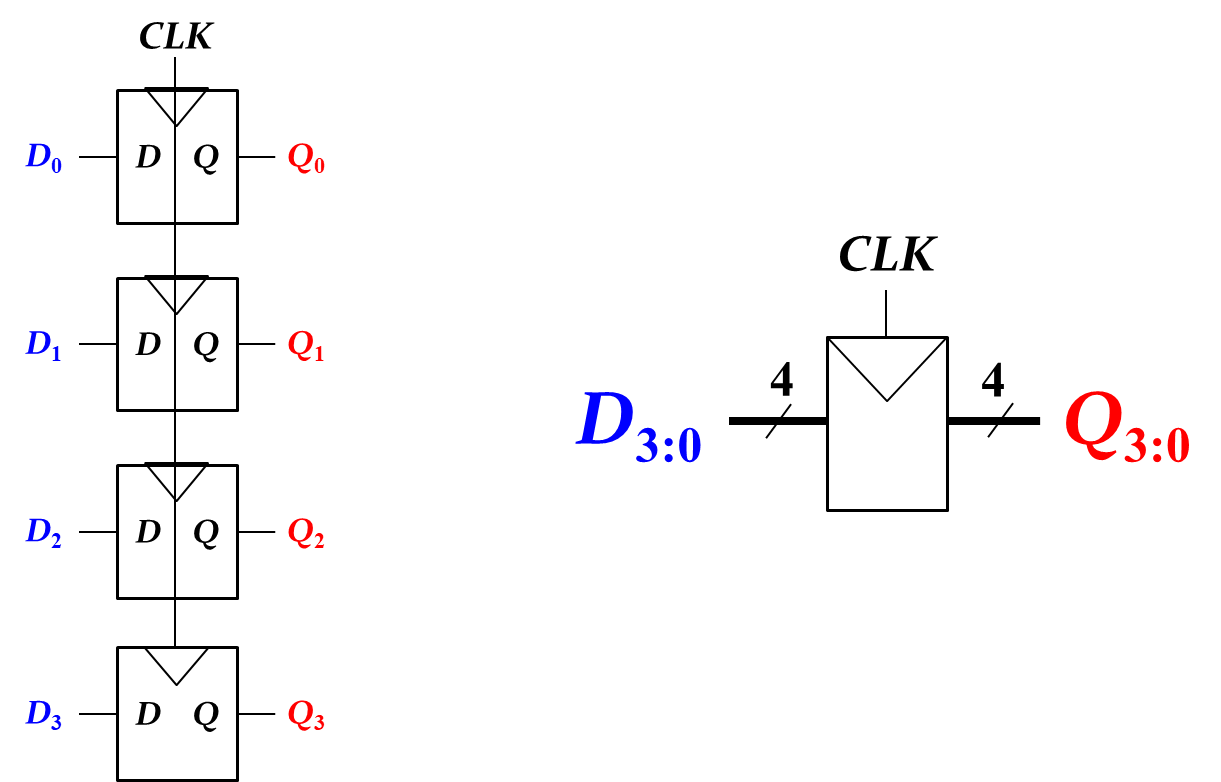

Fig. ‑. 4-bit Register

  • D Flip-Flop0 has the input D0 and the output Q0.
  • D Flip-Flop1 has the input D1 and the output Q1.
  • D Flip-Flop2 has the input D2 and the output Q2.
  • D Flip-Flop3 has the input D3 and the output Q3.

Notice that each edge clock CLK of D Flip-Flop is connected to the common CLK individually.
