Module #4, Assignment #2

Exercise #1

    gl_Position = projectionMatrix * modelViewMatrix * vPosition;

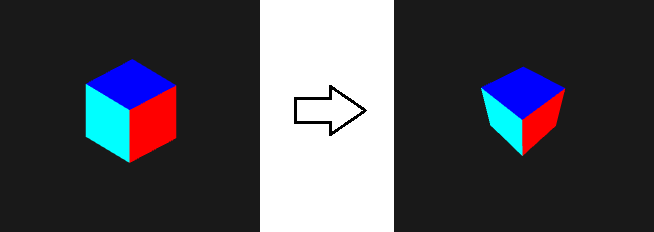

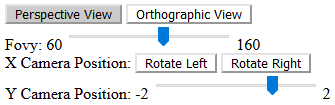

1. You will need to add the following global variables to your JavaScript code:

   ---

   var modelViewMatrix;
   var modelViewMatrixLoc;

   var projectionMatrix;
   var projectionMatrixLoc;

   var at = vec3(0.0, 0.0, 0.0);
   var up = vec3(0.0, 1.0, 0.0);

   var near = 0.1; //usually + .1 from the camera for perspective
   var far = 4.0; //arbitrary
   var left = -2.0;
   var right = 2.0;
   var ytop = 2.0;
   var bottom = -2.0;

   var fovy = 120.0;
   var isPerspective = true;

   var xAngle = 0.7;
   var yValue = 1.0;


   ---

2. And to your init() method, you will need to add the following code will set up the new matrices that you will be using:

   ---

       modelViewMatrixLoc = gl.getUniformLocation(program, "modelViewMatrix");
       projectionMatrixLoc = gl.getUniformLocation(program, "projectionMatrix");

       projectionMatrix = perspective(fovy, 1.0, near, far);
       gl.uniformMatrix4fv(projectionMatrixLoc, false, flatten(projectionMatrix));


   ---

3. Also in your init() method, you will need to add the appropriate handlers for each of your HTML controls.

   ---

4. Finally, in your render() method, you will need to add the following code above your gl.drawArrays( ... ) line:

       var eye = vec3(Math.sin(xAngle), yValue, Math.cos(xAngle));

       modelViewMatrix = lookAt(eye, at, up);
       gl.uniformMatrix4fv(modelViewMatrixLoc, false, flatten(modelViewMatrix));



Exercise #2

1. Most of your Javascript code has been given to you. For instance, you already have the theta angle declared, which is your horizontal angle of rotation through the x and z axes. But your program will also rotate vertically through the y axis, so you will need to declare another angle variable, called something like phi. In all, there are three new variables you should declare that have not been declared for you:

   var phi = 0.0;       // vertical angle of rotation
   var fovy = 37;       // frame of view angle for perspective view
   var isOrtho = true;  // flag to indicate current projection type


   ---

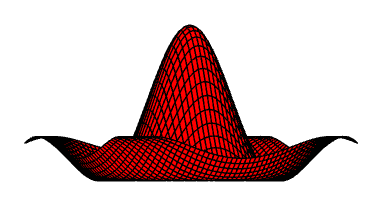

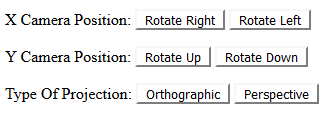

2. Next, in your init() method, you will have to add your six button handlers. The "Rotate Right" and "Rotate Left" button handlers should add or subtract 0.1 from the value of theta while the "Rotate Up" and "Rotate Down" button handlers should add or subtract 0.1 from the value of phi. And your "Orthographic" and "Perspective" buttons should appropriately alter the value of isOrtho".

   ---

3. All except one of your final changes need to be made in the render() method, but before you can make these changes you need to understand how the theta and phi angles determine the x, y and z coordinates of where the camera "eye" is.

   As you move through the angle theta horizontally, you are sweeping through an angle on a plane of the the x and z axes (in yellow), rotating around the y axis:


   This angle puts the camera at the x-coordinate that is equal to: radius * cos( θ ).
   And it puts it at the z-coordinate that is equal to: radius * sin( θ ):



   When you add the vertical movement to the camera with the angle phi sweeping through the y axis (in blue) you move vertically:


   This vertical motion moves the camera along the y-axis in the amount of: radius * sin( ϕ ).

   But it also affects the x and z axes as well by multiplying cos( ϕ ) to whatever the x and z values were as determined by the theta ( θ ) angle above:

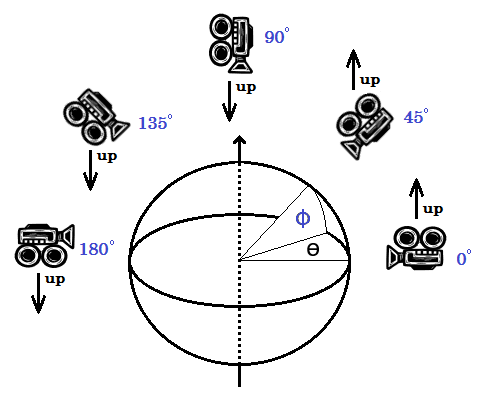

   Another issue you must consider is that when the camera is moving vertically through the angle phi ( ϕ ), the up direction changes from the point of view of the person looking through the camera lens. The up direction is toward the positive y axis until it reaches 90 degrees (which is PI/2 in radians). At that point the up direction is toward the negative y axis. And it stays that way until it reaches 270 degrees (which is 3 * PI / 2 in radians), at which point the up direction once again goes toward the positive y axis, as shown here:


   This all means that you will need to change the value of the up vector during the movement of the camera, so it can no longer be a constant. So go to the declaration area of the program and find the line:

   const up = vec3(0.0, 1.0, 0.0);


   And change that line to the line:

   var up = vec3(0.0, 1.0, 0.0);


   ---

   With this change and this information, it is now possible to finish the render() method:

   1. Inside the render() method, before the line that sets the value of the eye vector with "var eye = vec3( ... );", you need to deal with the issue of which direction is up pointing in. To make things simpler, lets make sure theta and phi, which are both in radians, stay between the value of 0 and 2 * PI with the following code:

          if (theta > 2 * Math.PI)
              theta -= 2 * Math.PI;
          if (theta < 0)
              theta += 2 * Math.PI;

          if (phi > 2 * Math.PI)
              phi -= 2 * Math.PI;
          if (phi < 0)
              phi += 2 * Math.PI;


   2. Next, still before the line that sets the value of the eye vector with "var eye = vec3( ... );", put another if statement that tests the value of phi and if it is greater than or equal to PI/2 AND if it is less than 3 * PI/2, then set the up vector equal to the negative y-direction:

          vec3(0.0, -1.0, 0.0)


      Otherwise (else), set the up vector equal to the positive y-direction:

          vec3(0.0, 1.0, 0.0)


   3. Next, modify the "var eye = vec3( ... );" statement that is on three lines, and instead make the eye vector have the following (x,y,z) vector value:
      • The x value should equal: radius * cos( θ ) * cos ( ϕ ).
      • The y value should equal: radius * sin ( ϕ ).
      • The z value should equal: radius * sin( θ ) * cos ( ϕ ).

      These values are the same as the ones discussed above that were illustrated in the diagrams.

   4. Next, add an if statement above the line:

          projectionMatrix = ortho(left, right, bottom, ytop, near, far);


      If isOrtho is true, then the above line should run.

      But if isOrtho is not true, then instead run a line that will set the projectionMatrix to a call to the perspective method, and pass it fovy as the first argument, 1.0 as the second argument, near as the third argument, and far as the last argument.

4. Now you should be all done.

Add a Comment block section to the top of your Javascript program in this assignment with the following information filled in using the following format:

/*
 * Course: CS 4722
 * Section: .....
 * Name: ......
 * Professor: ......
 * Assignment #: ......
 */

Be sure your program runs without error.

Deliverables

Turn in the files:

• LookAtCube.zip (with your HTML and JS files)
• HatShapeRotate.zip (with your HTML and JS files)

Do this by uploading the file as an attachment to this Module's assignment drop box in D2L Brightspace.
