Exercise 7: Axial Muscular System

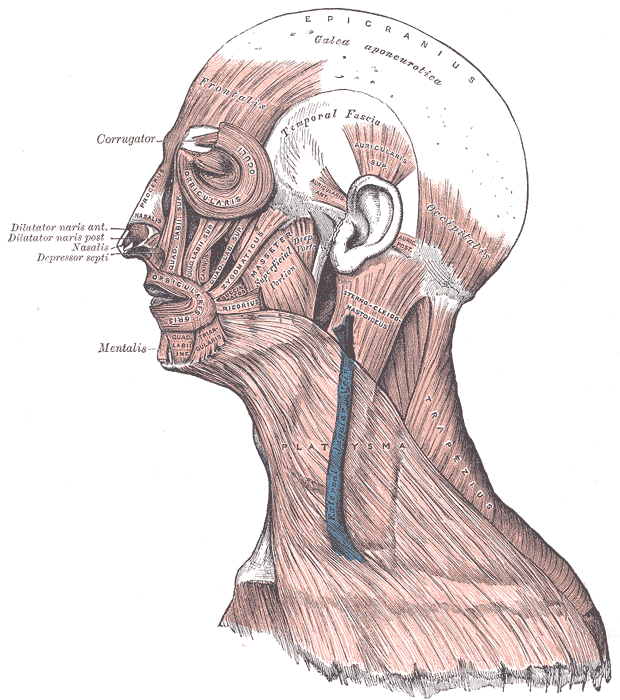

A drawing of a human head with muscles of the head and face labeled.

Figure 7.1. Muscles of the head and neck drawn to show their relative positions and muscle fiber orientation.

Exercise 7 Learning Goals

After completing this lab, students should be able to:

  • Describe and define the origin, insertion, and action of select muscles:
    • Involved in facial expression
    • Muscles that move the eye
    • Muscles of mastication
    • Muscles that move the head
    • Muscles of the abdomen
    • Muscles involved in breathing

Pre-Lab Activities for Exercise 7

Pre-Lab Activity 7.1: Muscle names their & Origin, Insertion and Action (O.I.A.)

Before lab begins, please make sure you research and write down the origins, insertions and actions for the muscles listed in the table below. Use the required textbook as a guide.

Muscles of the Face



Origin

Insertion

Action

Frontalis

Aponeurosis

Occipitalis

Aponeurosis

Temporalis

Elevation of mandible

Retraction of mandible

Orbicularis oculi

Around orbit

Zygomaticus major

Elevate corners of mouth (smile)

Masseter

Mandible

Buccinator

Orbicularis oris

Orbicularis oris

Maxilla & Mandible

Mentalis

Mandible

Muscles of the Head & Neck

Origin

Insertion

Action

Platysma

Skin over Mandible

Lateral pterygoid

 Sphenoid

Medial pterygoid

 Palatine & Maxilla

Sternocleidomastoid

Mastoid process

Semispinalis capitis

Occipital

Splenius capitis

Spinous processes of C7-T3

Longissimus capitis

Mastoid process

Muscles of the Eye

Origin

Insertion

Action

Superior rectus

Back of the orbit

Superior central eye

Inferior rectus

Back of the orbit

Inferior central eye

Lateral rectus

Back of the orbit

Lateral eye

Medial rectus

Back of the orbit

Medial eye

Superior oblique

Back of the orbit

Superior lateral eye

Inferior oblique

Back of the orbit

Inferior lateral eye

Muscles of the Trunk

Origin

Insertion

Action

Rectus abdominis

Pubic bone

External oblique

Iliac crest

Pubic bone

Linea alba

Internal oblique

Iliac crest

Transverse abdominis

Iliac crest

Cartilage of ribs 7-12

Thoracolumbar fascia

Muscles of Breathing

Origin

Insertion

Action

Diaphragm

Contraction=inhalation

Relaxation=exhalation

External intercostals

Superior border of rib below

Internal intercostals

Superior border of rib below

Exercise 7 Activities: The Axial Muscular System

There are over seven hundred different muscles associated with the human body. As we learned from the previous lab, skeletal muscle contractions cause the muscle to shorten. This shortening leads to movement of the skeleton. Movement of bones can only take place at joints. Therefore, each muscle always crosses a joint and attaches to the bones that form the joint. Each muscle has an origin attachment and an insertion attachment. The origin is where a muscle attaches to the stationary bone during an action and the insertion is where a muscle attaches to the bone that moves during action. The action of a muscle is a particular movement of the skeleton when the muscle has contracted. Therefore, by looking at the origin and insertion of each muscle, we can infer the action of the muscle.

Lab Activity 7.1: Naming of Skeletal Muscles

There are several ways to determine names of muscles. In general, muscles are named by one or more of the following criteria:

  1. Shape of muscle
  2. Size of the muscle compared to other muscles in the area (relative size)
  3. Location of muscle in the body
  4. Location of muscle’s origins and insertions
  5. Number of origins
  6. Principal action of the muscle
  7. Direction of the fascicles

Using Figure 7.2, the anatomical models in lab, and/or your textbook, give an example of two muscles named based on the following criteria for each category.

  1. Shape of muscle:
  2. Size of the muscle compared to other muscles in the area (relative size):
  3. Location of muscle in the body:
  4. Location of muscle’s origin and insertion:
  5. Number of muscle origins:
  6. Principal action of the muscle:
  7. Direction of the muscle’s fibers:

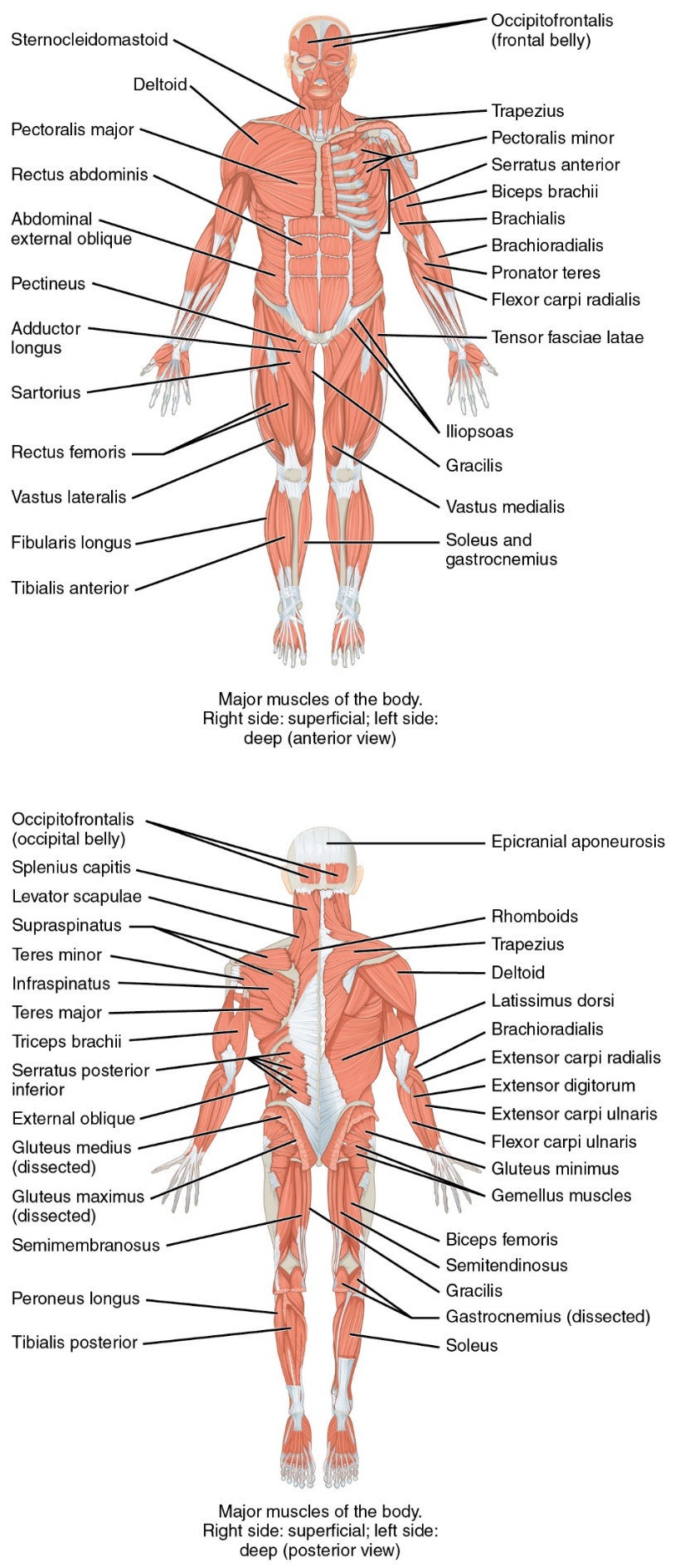

A diagram of the muscles of the human body, anterior view with superficial muscles labeled on the right side of the body and deeper muscles of the chest on the left side of the body.

A diagram of the muscles of the human body, posterior view with superficial muscles labeled on the right and deeper muscles on the left side of the body.

Figure 7.2 Overview of anterior and posterior muscles.

Activity 7.2: Origins, Insertions, Actions and Fascicular arrangements of axial muscles

For each of the following groups of muscles, use the anatomical models in the lab and the figures in this chapter to exam the individual muscle’s origins, insertions, and fascicle arrangement. Fill out the table after completing your examination of the anatomical models and figures.

Muscles of facial expression

The origins of the muscles of facial expression are on the surface of the skull (remember, the origin of a muscle does not move). The insertions of these muscles are connected to the dermis of the skin. Because the muscles insert in skin rather than bone, when they contract, the skin moves to create facial expression.

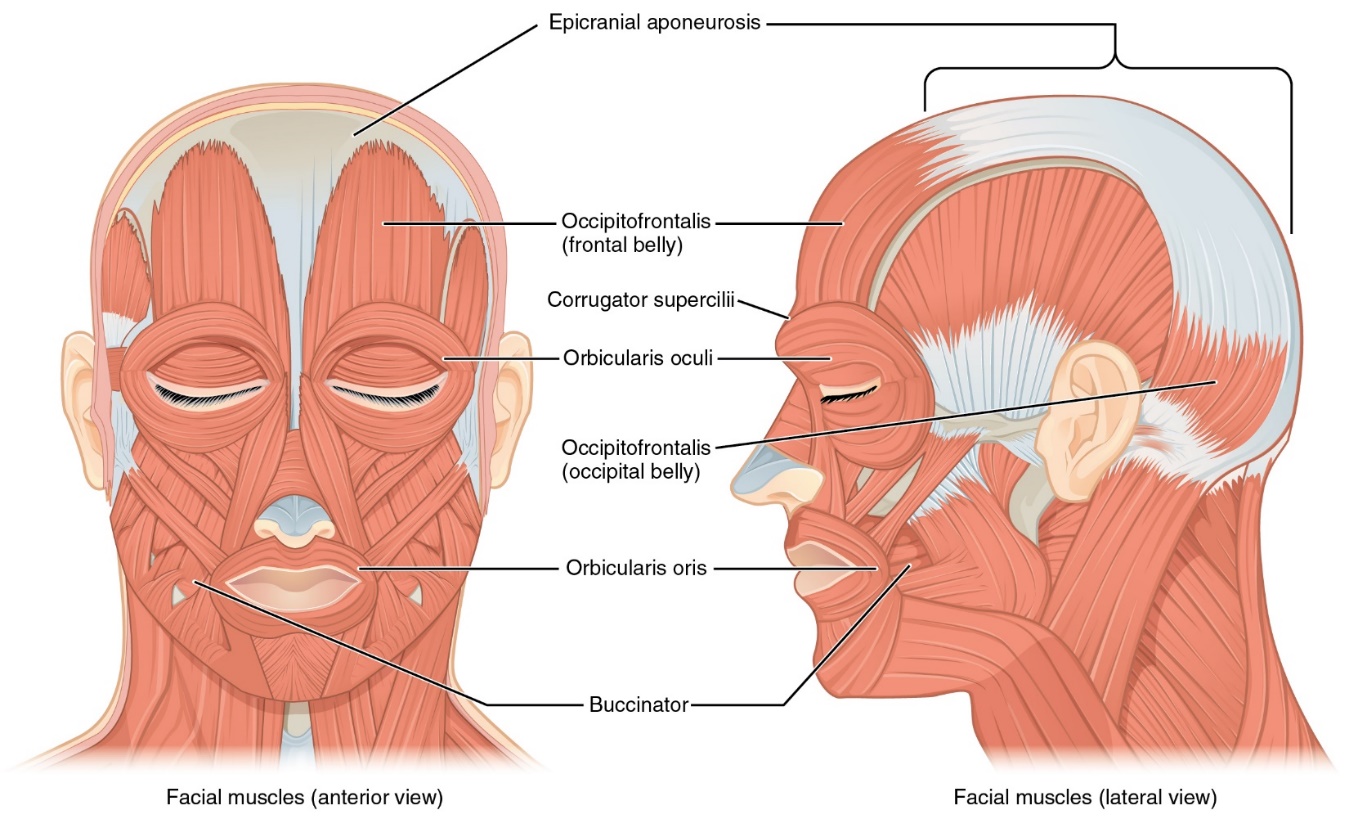

A diagram of the face and neck, anterior and lateral views, with muscles labeled.

Figure 7.3 Muscles of Facial Expression

Complete the table for Facial Muscles

Muscle Name

Origin

Insertion

Action

Frontalis

Occipitalis

Orbicularis oris

Zygomaticus major

Buccinator

Mentalis

Platysma

Orbicularis oculi

Anatomy in Clay® Instructions

To demonstrate your understanding of origins, insertions, and fascicle arrangement of the muscles, you will use an oil-based clay to form select muscles on the Manikin®. Please follow the instructions below. If you are unsure of what to do, ask your instructor.

  • Keep your space clean and organized.
  • Keep track of your tools and supplies.
  • Feel free to stand or sit when working on your model.
  • Move your model around so it is easy to build on but be careful!
  • Use dry paper towels to remove clay from hands and tools (DO NOT USE SOAP OR WATER).
  • Use red/ terra cotta clay to build muscles.
  • Always keep the clay on the green mats.

Clean Up at the end of lab period

1. Take all clay off the model!

2. Roll into balls NO BIGGER than image below and organize into plastic bags.

3. Use dry paper towels to wipe off as much clay as possible from the model and tools used.

4. Return your model to its original place.

Muscles that Move the Eye

It takes six extraocular muscles to create the fine tandem movements of the eyes. These muscles originate behind the eye and insert on the sclera (the white of the eye). Like the muscles of facial expression, the muscles that move the eye are a rare example of skeletal muscle inserting into non-bony attachments.

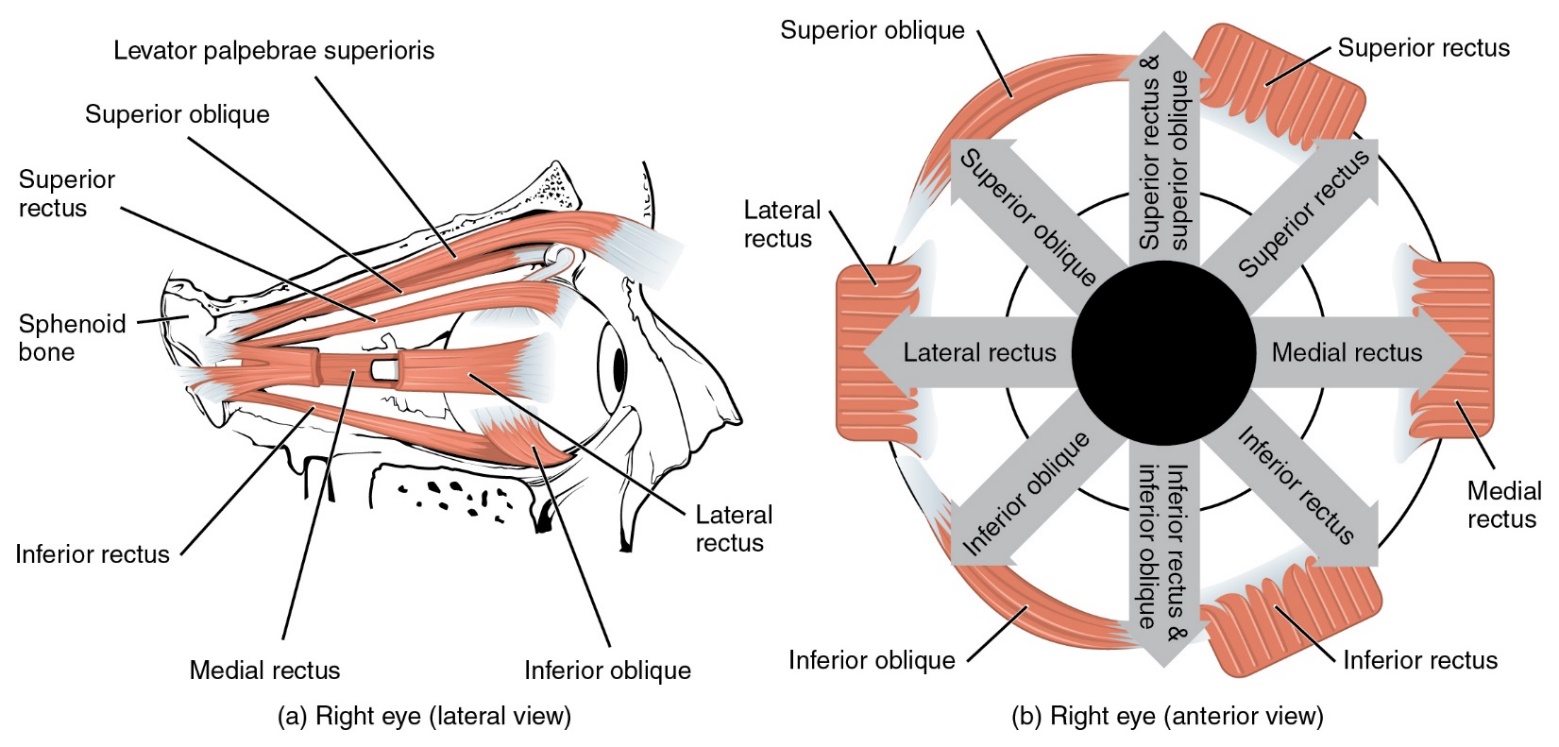

A diagram of the eye and the eye muscles labeled.

Figure 7.4: Muscles that Move the Eye

Complete the table for Eye Muscles

Muscle Name

Origin

Insertion

Action

Superior rectus

Inferior rectus

Lateral rectus

Medial rectus

Superior oblique

Inferior oblique

Muscles of Mastication

These muscles close the mandible. This movement is especially important when we chew food, hence the name muscles of mastication (chewing).

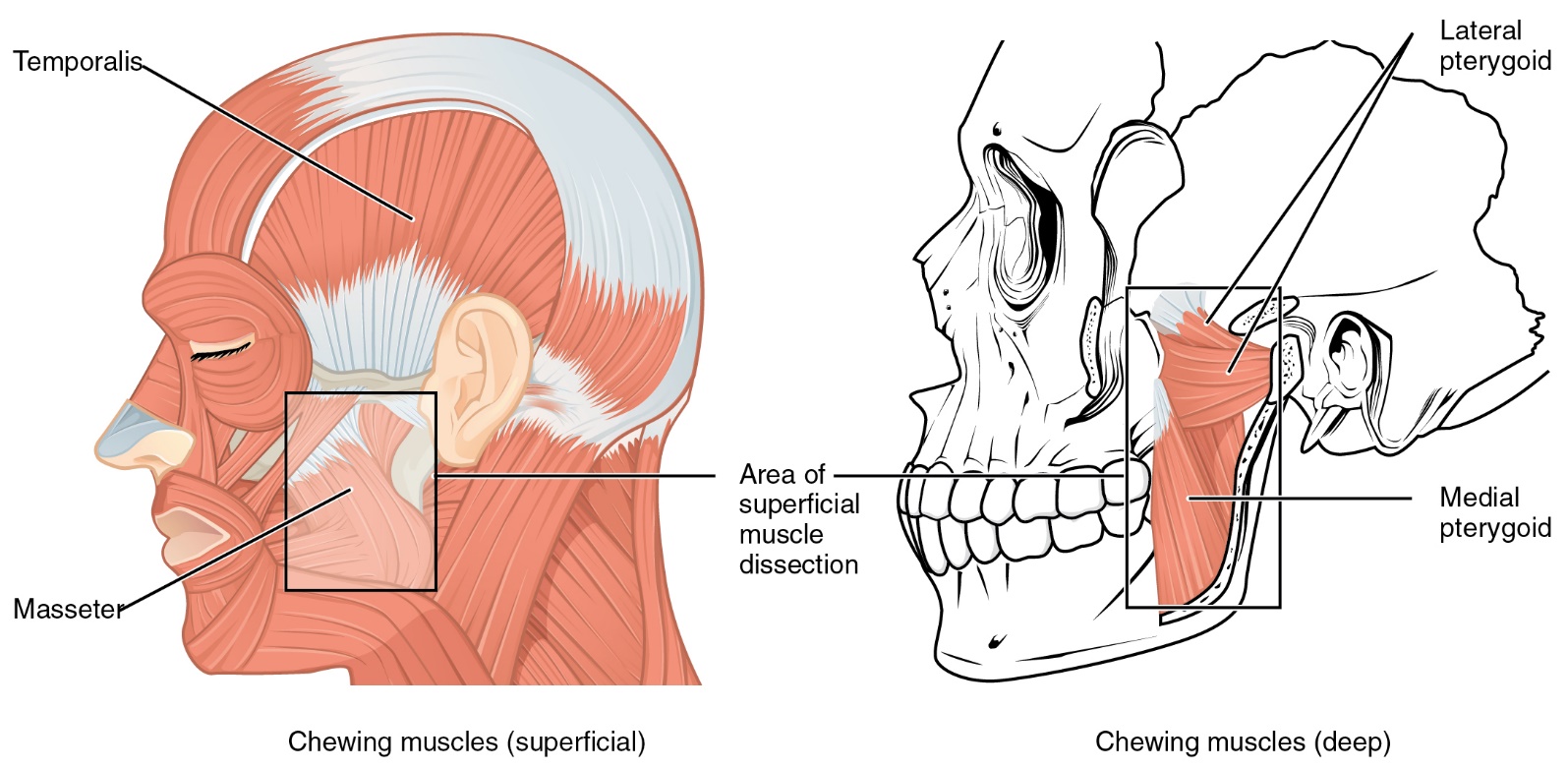

A lateral diagram of the human head with superficial muscles and deeper muscles of the jaw shown.

Figure 7.5 Muscles of Mastication

Complete the table for Muscles of Mastication

Muscle Name

Origin

Insertion

Action

Temporalis

Masseter

Lateral Pterygoid

Medial Pterygoid

Muscles that Move the Head

The head pivots on the vertebral column and as such can flex, extend, and rotate. The head muscles perform flexion, extension and rotation depending on the contraction coordination. For example, if only one sternocleidomastoid contracts (unilaterally), the head will rotate but if both sternocleidomastoids contract (bilaterally), the head will flex.

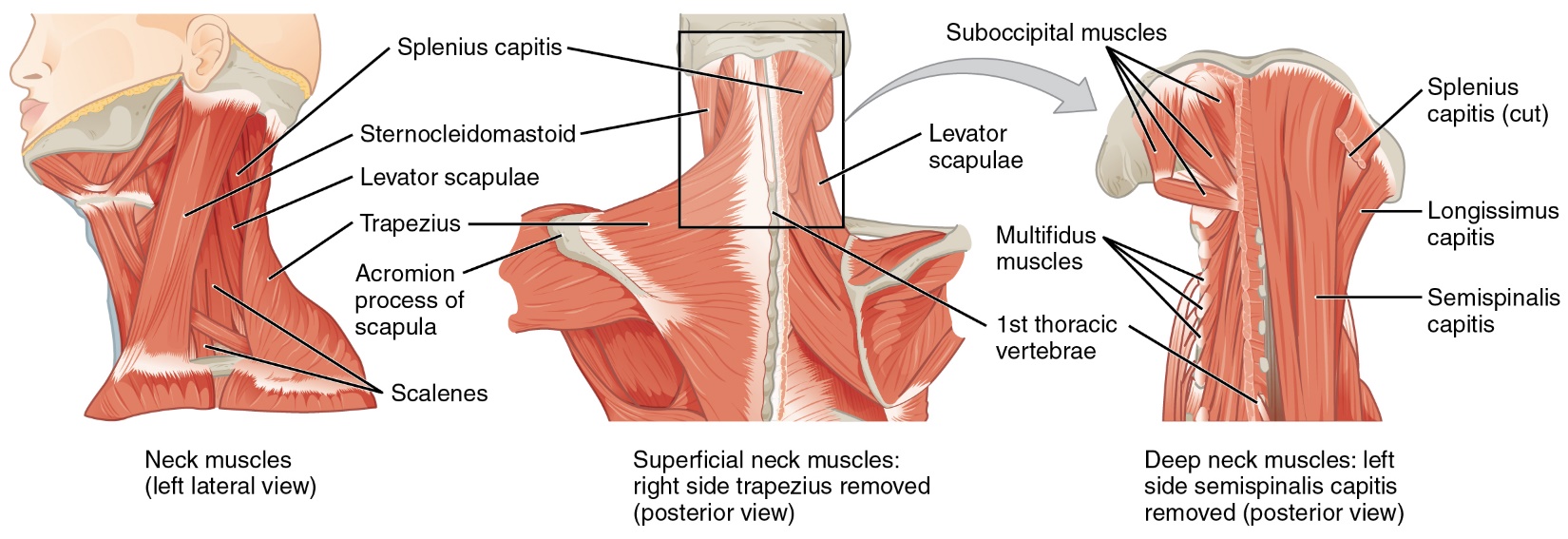

A diagram of the muscles of the neck and upper back, posterior and lateral views provided. Superficial muscles are shown first on the lateral neck and shoulders and then the deeper muscles are shown in the posterior view.

Figure 7.6 Muscles that Move the Head

Muscle Name

Origin

Insertion

Action

Sternocleidomastoid

Semispinalis capitis

Splenius capitis

Longissimus capitis

Activity 7.3: Anatomy in Clay® - Muscles that move the Head

On your model, place the sternocleidomastoid and semispinalis capitis muscles and include the fascicle orientation.

Muscles of the Anterior Abdominal Wall

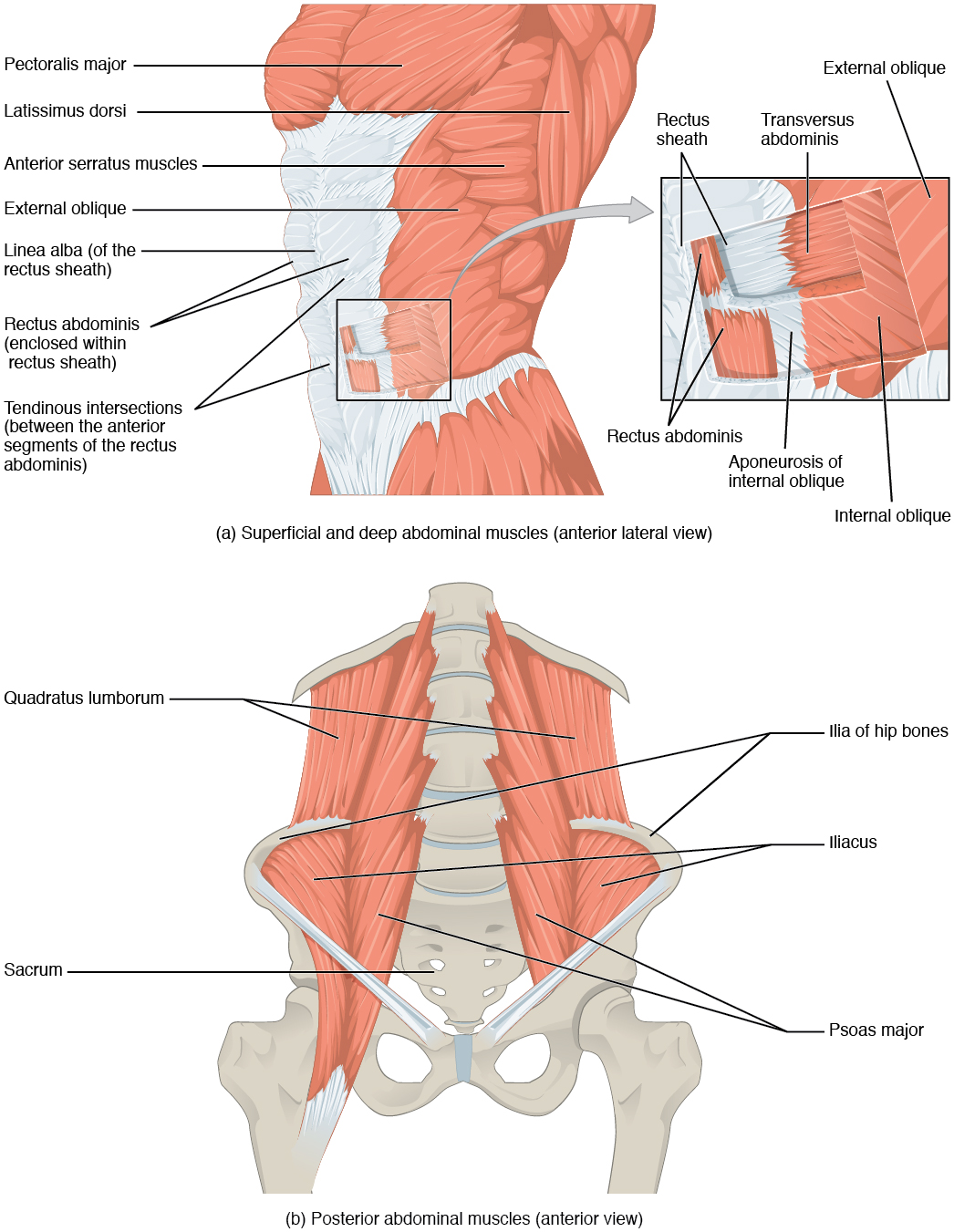

A diagram of the muscles of the abdominal wall, showing portions of the superficial muscles dissected to reveal the deeper muscles.These muscles are important to human locomotion as they stabilize our core, help with posture, and protect the abdominal organs. There are four pairs of abdominal muscles that cover the anterior and lateral abdominal region and meet at the midline of the body anteriorly. The muscles of the anterolateral abdominal wall can be divided into four groups: the external obliques, the internal obliques, the transversus abdominis, and the rectus abdominis.

Figure 7.7 Muscles of the Anterior Abdominal Wall

Muscle

Origin

Insertion

Action

Rectus abdominis

External oblique

Internal oblique

Transverse abdominis

Activity 7.4: Anatomy in Clay® - Muscles of the Anterior Abdominal Wall

On your model, place the rectus abdominis and transverse abdominis muscles and include the fascicle orientation.

Diaphragm: the primary muscle of Breathing.

The volume and pressure within the thoracic cavity changes during breathing and is due to the alternating contraction and relaxation of the diaphragm. Additionally, it serves as a physical barrier between the thoracic and abdominal cavities. The superior surface of the diaphragm is convex, creating the elevated floor of the thoracic cavity. The inferior surface is concave, creating the curved roof of the abdominal cavity.

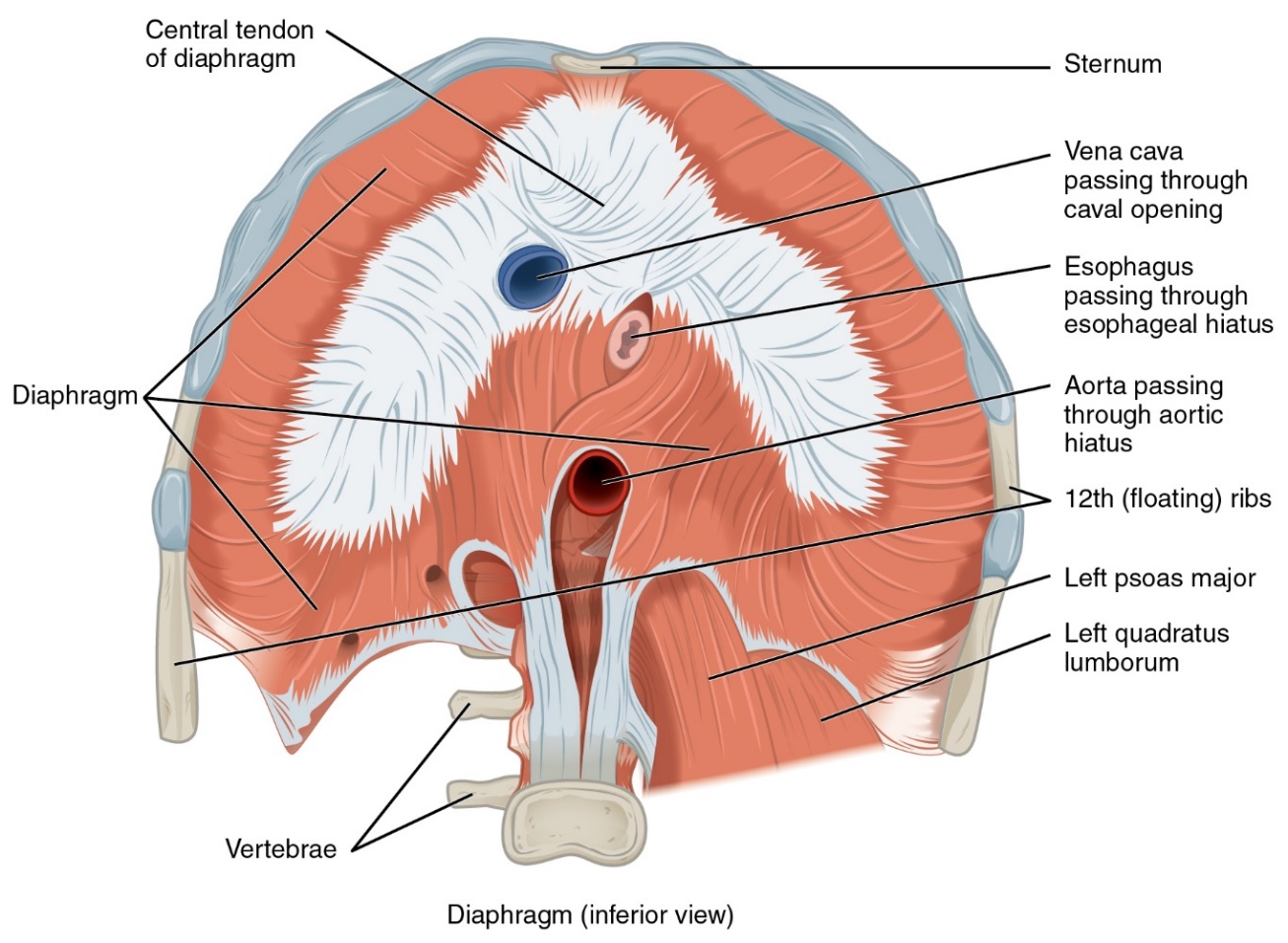

A diagram of an inferior view of the diaphragm with rib cage, great vessels and esophagus labeled.

Figure 7.8 Muscles used in Breathing

Muscle

Origin

Insertion

Action

Diaphragm

External intercostal

Internal intercostal

Post-Lab 7 Review

Post Lab Activity 7.1: Identify the Axial muscle

On the diagram below identify the muscle using the appropriate letter.

  1. Orbicularis oris
  2. Orbicularis oculi
  3. Frontalis
  4. Occipitalis
  5. Buccinator
  6. Epicranial aponeurosis

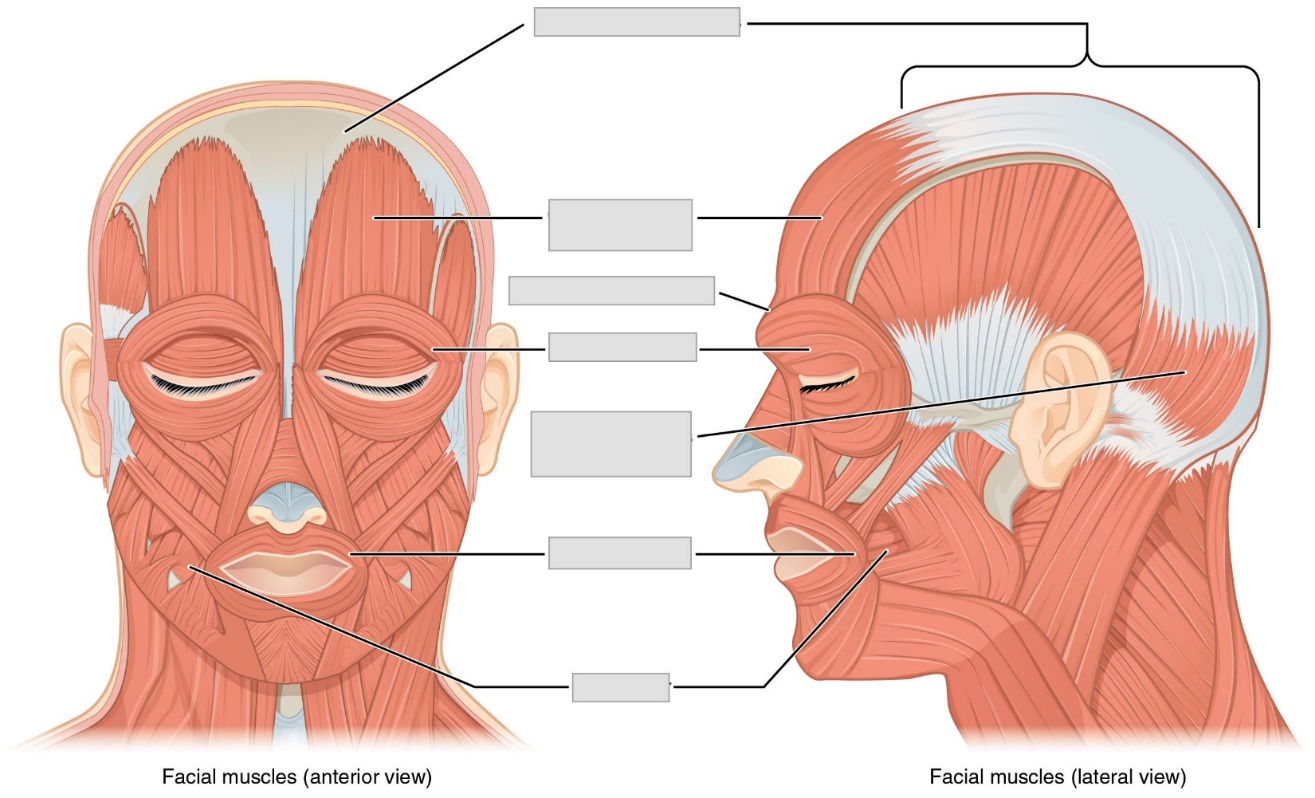

A diagram of the face and neck with areas indicated for muscles to be labeled.

Figure 7.9: Unlabeled facial muscles.

Post Lab Activity 7.2: Identify the Axial Muscle

On the diagram below identify the muscle using the appropriate letter. A diagram of the lateral view of the eye with indicated muscles to be labeled.

  1. Inferior oblique
  2. Medial rectus
  3. Superior oblique
  4. Lateral rectus
  5. Superior rectus
  6. Inferior rectus

Figure 7.10: Unlabeled muscles of the eye.

Post Lab Activity 7.3: Identify the Axial Muscle

On the diagram below identify the muscle using the appropriate letter.

  1. Lateral pterygoid
  2. Medial pterygoid
  3. Temporalis
  4. Masseter

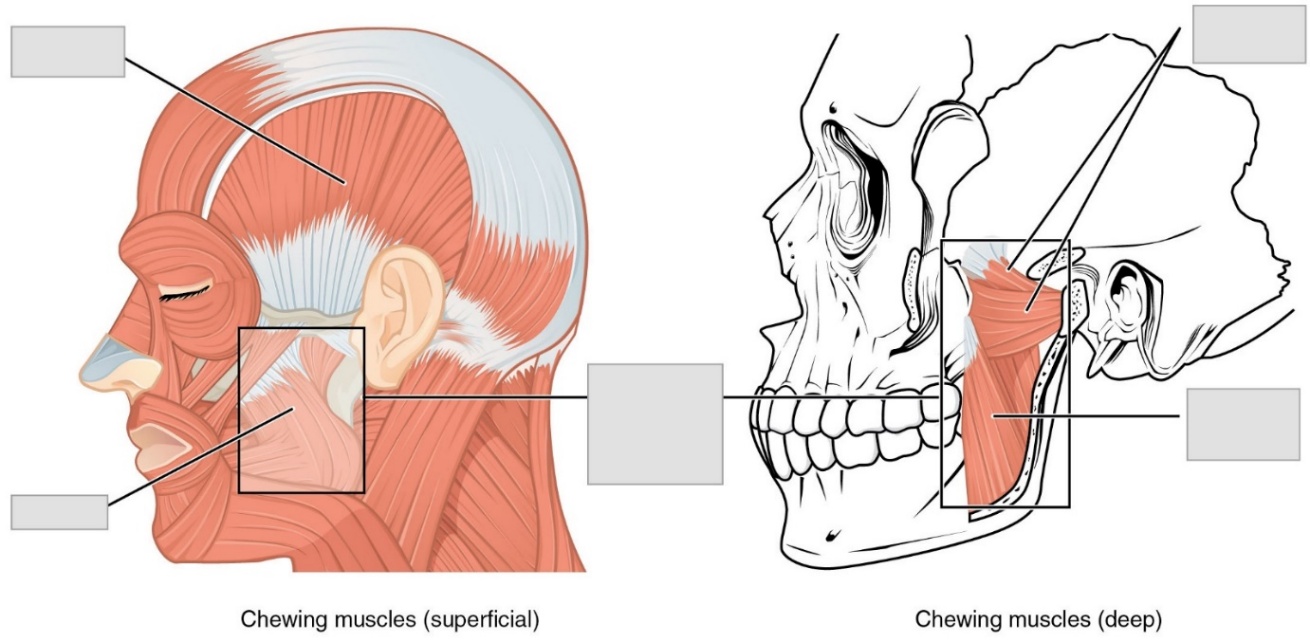

A diagram of the muscles of the jaw with areas indicated for muscles to be labeled.

Figure 7.11: Unlabeled muscles of the jaw.

Post Lab Activity 7.4: Axial Muscle OIA

Match the axial muscle to its origin, insertion, or action

Letter

Muscle

OIA

Mentalis

a. insertion is superior border of rib below

Temporalis

b. action is elevation and retraction of the mandible

Lateral pterygoid

c. origin is the pubic bone

Longissimus capitis

d. action is abducting the eye

Rectus abdominis

e. origin is the sphenoid

External oblique

f. action is compressing the abdomen

External intercostals

g. origin is the mandible

Lateral rectus

h. action is pressing the cheeks against the lips and teeth and assists in mastication

Transverse abdominis

i. insertion is iliac crest, pubic bone and linea alba

Buccinator

j. insertion is the mastoid process
