Exercise 6: Joints and Muscle Tissue

A drawing of a standing naked male figure with right hand raised and muscles numbered.

Figure 6.1 Illustration of skeletal muscles based on anatomical preparations from 17th century scholar Bernardino Genga.

Exercise 6 Learning Goals

After completing this lab, you should be able to:

  • Describe the structural and functional classification of joints
  • Explain the structure and functions of synovial joints
  • Identify major joints by location, classification, and movement
  • Communicate the types of movements that occur at synovial joints
  • Describe the structural and functional differences between skeletal, cardiac, and smooth muscle
  • Explain the anatomical organization of a skeletal muscle including connective tissue, muscle tissue, muscle cells and contractile proteins
  • Explain which structures are important for muscle contraction
  • Describe the distinct types of fascicle arrangements present in muscle
  • Understand how muscles are named

Pre-Lab Activities for Exercise 6Pre-Lab Activity 6.1: Joints

Joints are classified structural as fibrous, cartilaginous, and synovial joints. They are also classified functionally into synarthrosis, amphiarthrosis and diarthrosis. Movements occur at articulation points between bones, specifically synovial joints that are freely movable. The movements that occur at synovial joints include gliding, angular and special movements. Angular movements involve the increase or decrease of an angle between articulating bones and include flexion, extension, lateral flexion, hyperextension, abduction, adduction, and circumduction. Special movements like elevation, depression, protraction, retraction, inversion, eversion dorsiflexion, plantar flexion and opposition occur at specific joints. Use your textbook or notes to complete the following tables.

Term

Definition

Example Joint

fibrous joint

cartilaginous joint

synovial joint

Term

Definition

Example Joint

Synarthrosis

AmphiartHrosis

Diarthrosis

Pre-Lab Activity 6.2: Skeletal Muscle

Skeletal muscle is organized into bundles of muscle cells. Muscle cells are also known as fibers due to their long, cylindrical appearance. These bundles of muscle fibers are held together by different layers of connective tissues. This connective tissue is continuous with the tendon, which attaches muscle to the bone. There are three layers of continuous connective tissue from superficial to deep. The three layers of connective tissues are:

  1. Epimysium- covering the entire muscle belly and continuous with tendons
  2. Perimysium- covering bundles of muscle fibers in units called fascicles
  3. Endomysium- covering individual muscle fiber/cell

Whole muscles are made up of bundles of fascicles and each fascicle is made up of bundles of muscle fibers.

In the diagram below, fill in the blanks indicating the three layers of muscle connective tissue

A diagram of three muscles structures indicating the anatomical make up of the muscle. The first image displays a muscle bundled together with one tendon and a cross section of ten fascicles.

The second image is a cross section of a single muscle fascicle with 21 muscle fibers.

The third image contains a cross section of a single muscle fiber with 48 myofibrils.

C

A

B

Figure 6.2 Organization of muscle (a) muscle belly (b) muscle fascicle (c) muscle fiber.

Pre-Lab Activity 6.3: Myocyte Questions

1. Describe the arrangement of muscle fibers in a skeletal muscle including levels of connective tissues?

2. What is a sarcolemma and what is its main function?

3. Why do muscle fibers require more mitochondria than a typical cell?

4. What is a sarcoplasmic reticulum and what is its main function?

5. Where in a muscle fiber are the contractile units (i.e., sarcomeres) found?

6. What are the two major proteins in a muscle fiber that are responsible for contraction? What other protein plays a significant role in the contraction cycle?

Pre-Lab Activity 6.4: Anatomy of a Muscle Fiber

Use your textbook to fill in the blanks indicating the different organelles of a muscle fiber.

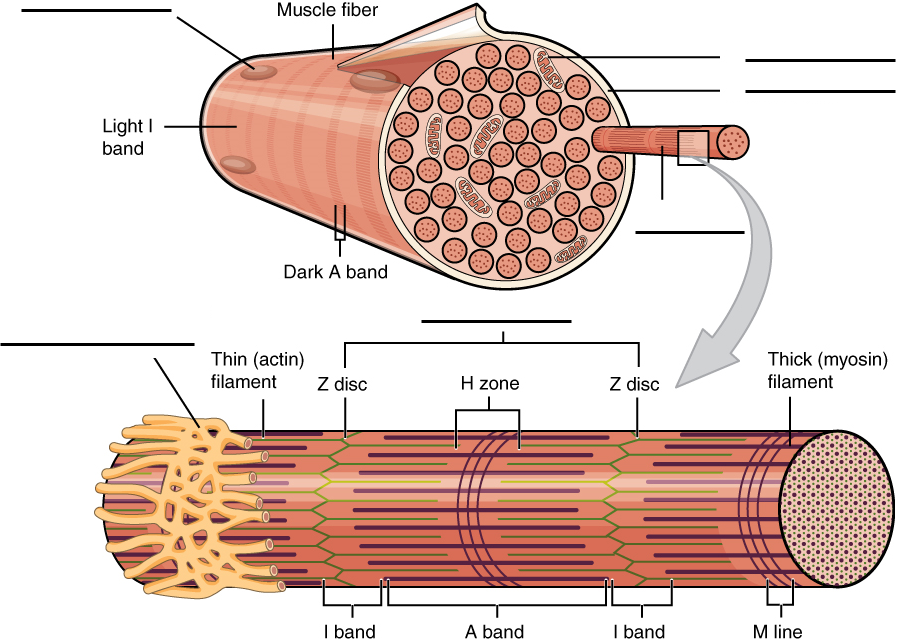

  • A diagram of a cross section of a muscle fiber with areas indicated for labeling.

The second image is of a myofibril with myofilaments arranged into sarcomeres.Sarcomere
  • Nucleus
  • Mitochondrion
  • Sarcolemma
  • Sarcoplasmic Reticulum
  • Myofibril

Figure 6.3 Anatomy of a muscle fiber/cell

Exercise 6 Activities

6.1: Synovial Joints of the Skeleton

Synovial joints are freely movable joints. With bones and skeletal muscle, allow for limb, head, and torso movements. These joints are characterized by having a synovial cavity filled with a viscous lubricating fluid between articulating bones and is enclosed within a two-layered articular capsule. Specific terminology is used to designate the various movements that occur at synovial joints.

Complete the table below.

Movement

Definition

Example Joint

Gliding

Movement of flat bones in a back and forth or side to side motion

Intercarpal

Rotation

Movement of a bone around its longitudinal axis

Flexion

Elbow

Extension

Increase in an angle to normal anatomical position

Hyperextension

Atlanto-axial

Abduction

Adduction

Circumduction

Elevation

Depression

Inversion

Eversion

Protraction

Retraction

Plantar flexion

Dorsiflexion

Activity 6:1 Identify Synovial Joint Movements. Your instructor will provide you with images of various movements to complete the activity below.


Describe Movement

Name Joint

A

B

C

D

E

F

G

H

I

J

K

L

6.2: Muscle Tissue Histology

Three histology images of muscle. The first image shows a longitudinal section of skeletal muscle with peripheral nuclei visible. The second image shows a single nucleus in the middle of spindle shaped smooth muscle cells. The third image shows branched cardiac muscle cells with a  single nucleus per cell.Figure 6.4 Longitudinal sections of the three types of muscle tissue (a) skeletal, (b) smooth, and (c) cardiac.

Activity 6.2: Differences between Skeletal, Cardiac, & Smooth Muscle

Set up your compound microscope and select one muscle composite slide (all three muscle types are present on one slide). When looking at your slide make sure you look at all three types of muscle tissue and identify each one. It is much easier to visualize the features of individual muscle cells in longitudinal orientation. You will need to use your 10X or 40X objectives.

Complete the table below after viewing the types of muscle tissue under the light microscope and use your textbook or lecture notes to find additional information that may not be as easy to see.

Characteristics

Skeletal

Cardiac

Smooth

Location

Number of nuclei

Location of nuclei

Striated or non-striated

Intercalated discs?

Cell/fiber length

Contraction time

Within skeletal muscle cells (known as fibers) there are proteins (actin and myosin) that cause the muscle cells to shorten. This shortening will end up moving a bone that the muscle is attached to, and those striations are proteins that help the skeletal muscle to contract. The myofilaments made of proteins are small, but muscles are big!

6.3: Anatomy of the Sarcomere

The sarcomere is the contractile unit of the cell and contains proteins arranged in a way that allows the muscle to contract and shorten (the whole point of a muscle!). In Figure 6.4, bundles of perfectly organized sarcomeres are found within myofibrils (and myofibrils make up each individual muscle fiber).

The contractile proteins within each sarcomere are known as either thick or thin filaments. Thin filaments are made up of the protein actin. Thick filaments are made up of the protein myosin. There are also regulatory proteins troponin and tropomyosin that determine whether thick and thin filaments will interact to initiate a muscle contraction (see steps of sarcomere shortening below)

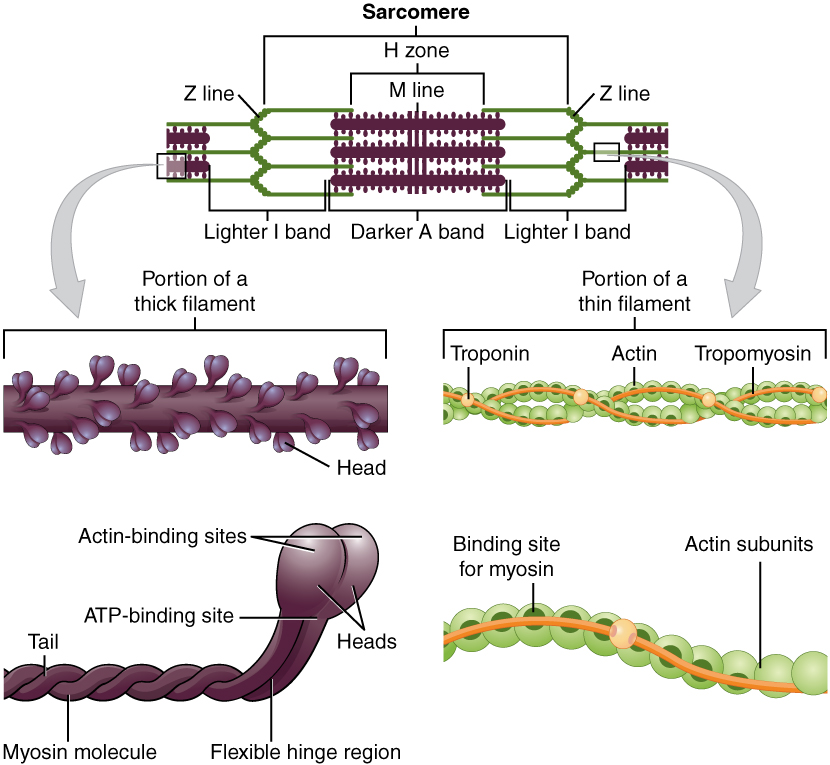

A diagram of the different structural components of a sarcomere, including thick and thin filaments.

Figure 6.5 Anatomy of a sarcomere

Activity 6.3: Questions Regarding the Parts of the Sarcomere

  1. What protein composes thin filaments?
  2. What protein composes thick filaments?
  3. Define the different part of a sarcomere
    1. H zone
    2. Z lines (discs)
    3. M line
    4. I band
    5. A band
  4. What is the role of tropomyosin?
  5. What is the role of troponin?

6.4: Sliding-Filament Theory

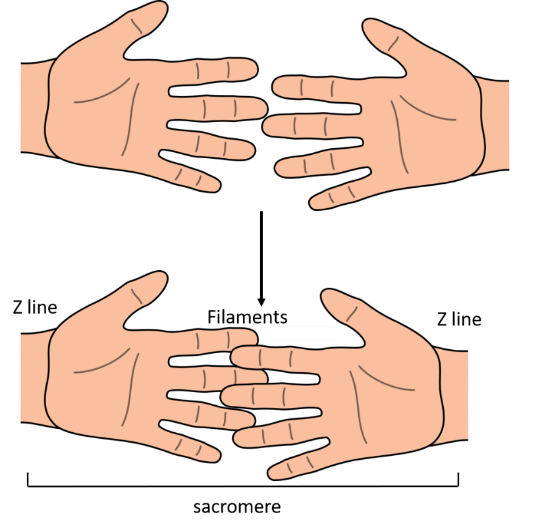

Figure 6.6 Visualizing the shortening of a sarcomere using your fingers.

A pair of hands demonstrating how a sarcomere works by pulling thin filaments towards the middle of the sarcomere. Much like fingers on the right and left hand are pulled together to create woven fingers.The whole point of a muscle (and sarcomere) is shortened when stimulated. But how does a muscle shorten? And what materials are required to stimulate this shortening?

Interlocking your fingers helps to visualize how a sarcomere can shorten. Place both hands in front of your face with your palms facing you. Your fingers represent the proteins myosin and actin. Your wrists represent Z lines (discs). Interlock your fingers and move them closer together as in Figure 6.6 below. As your fingers (filaments) slide past each other, your wrists (Z lines) get closer together and therefore ‘shorten.’

Steps of Sarcomere Shortening

Sarcomeres shorten by the heads of myosin (thick filament) attaching to myosin binding sites on actin (thin filament). This attachment is called a cross bridge. Using ATP, the myosin head swivels (called the power stroke), bringing the two ends of the sarcomere closer together. Calcium from the sarcoplasmic reticulum is released in response to a muscle action potential from a nerve impulse. Calcium binds to troponin, which causes tropomyosin to change shape and expose myosin binding sites on the actin.

  1. The myosin head (energized by ATP breaking down to ADP + P) then binds to the actin, forming the cross bridge.
  2. The myosin head swivels (power stroke), pulling the actin closer to the M line or center of the sarcomere, narrowing the H Zone. ADP +P molecules are released from the myosin head
  3. The myosin head detaches from the actin when a new molecule of ATP binds to the myosin head
  4. The new ATP molecule breaks down, releasing energy that re-orientates the myosin head to reposition itself for a new cycle of muscle contraction

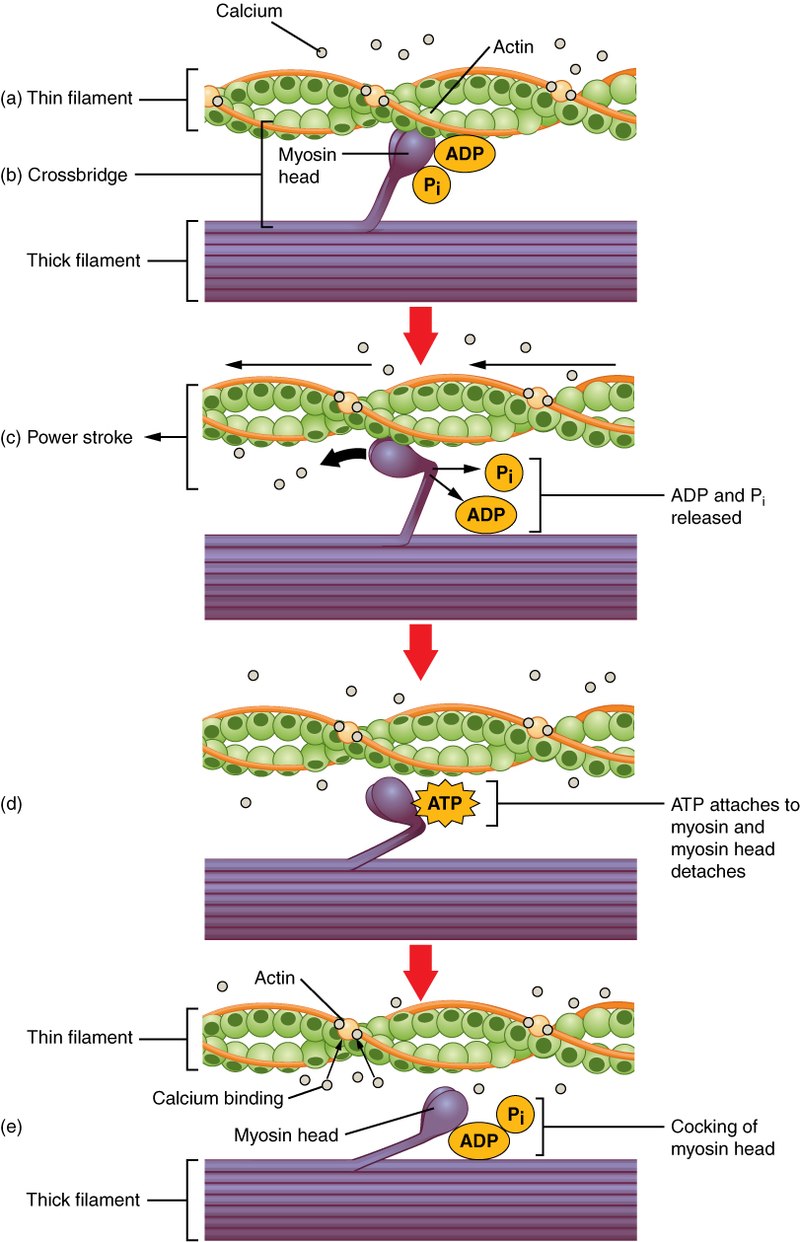

A diagram demonstrating how the sliding filament theory works. Thick filaments are shown with myosin heads grabbing onto actin thin filaments creating a cross bridge and power stroke of a muscle contraction.

Figure 6.7 Steps of one muscle contraction cycle

Activity 6.5: Fascicle Arrangements

Skeletal muscle creates bundles of muscle fibers known as fascicles. The fascicle arrangement within a muscle can aid in its identification. There are five basic fascicle patterns:

  1. Parallel: Fascicles are arranged side-by-side parallel to each other. The muscle has a strap-like appearance. (Example: Sartorius)
  2. Fusiform: Fascicles are arranged side-by-side but taper at both ends of the muscle with a bulge in the middle. The muscle takes on a spindle-shaped appearance. (Example: Teres Minor)
  3. Convergent: Fascicles are broadly distributed at one point of attachment but converge at the other point of attachment. The muscle has a triangular appearance. (Example: Temporalis)
  4. Circular: The fascicles are arranged in concentric rings around an orifice of the body. The muscle appears circular. (Example: External anal sphincter)
  5. Pennate: The fascicles are arranged at an oblique angle to a central tendon running through the muscles. If the fascicles are only on one-side of the central tendon, then it is unipennate, and the muscle appears like one-half of a feather. If the fascicles are on both sides on the central tendon, it is bipennate, and the muscle appears like a feather. If the tendon branches several times the fascicles become arranged at multiple angles in curved bundles the muscle is called multipennate.

A diagram of a human body with the different muscle fascicles labeled on the image.

Figure 6.8: The different types of fascicle arrangements in muscles of the body.

Match the name of the muscle with letters depicted in the image below (Figure 6.9) with fascicle arrangement listed.

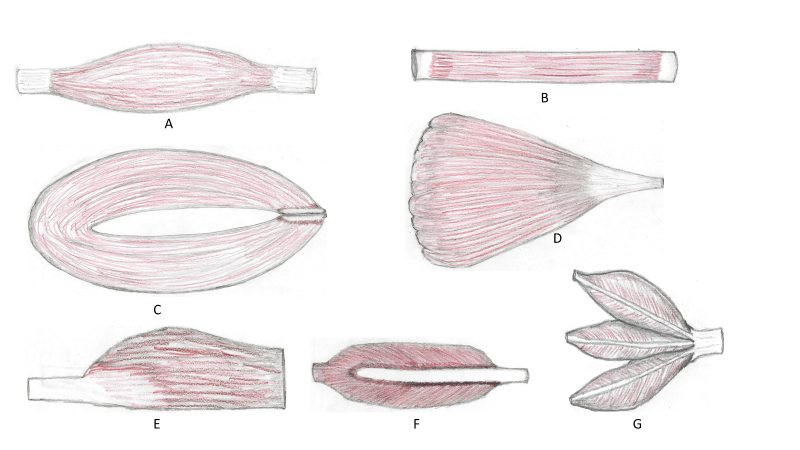

Seven hand drawn images of muscle fascicle arrangements each lettered A-G.

Fascicle arrangement

Letter of Muscle Depicted

Convergent

Parallel

Bipennate

Fusiform

Multipennate

Circular

Unipennate

Figure 6.9 Skeletal muscle fascicle arrangement and example muscles. Line drawings by Kingsley Dunkley.

Activity 6.6: Anatomy in Clay®

To demonstrate your understanding of origins, insertions, and fascicle arrangement of the muscles, you will use an oil-based clay to form select muscles on the Manikin®. Please follow the instructions below. If you are unsure of what to do, ask your instructor.

  • Keep your space clean and organized.
  • Keep track of your tools and supplies.
  • Feel free to stand or sit when working on your model.
  • Move your model around so it is easy to build on but be careful!
  • Use dry paper towels to remove clay from hands and tools (DO NOT USE SOAP OR WATER).
  • Use red/ terra cotta clay to build muscles.
  • Always keep the clay on the green mats.

Clean Up at the end of lab period

1. Take all clay off the model!

2. Roll into balls NO BIGGER than image below and organize into plastic bags.

Shape, circle

Description automatically generated

3. Use dry paper towels to wipe off as much clay as possible from the model and tools used.

4. Return your model to its original place.

Anatomy in Clay®- – Facial Muscles

On your model, place the muscles frontalis and occipitalis, zygomaticus major, orbicularis oculi, orbicularis oris, masseter, and temporalis. Include fascicle orientation.

Muscle

Origin

Insertion

Action

Frontalis

Occipitalis

Zygomaticus

major

Orbicularis oculi

Orbicularis oris

Masseter

Temporalis

Post-Lab 6 Review

Complete the tables below for axial, upper and lower body joints using information you learned from lab. Use your textbook or notes for reference material.

Upper Body Joints

Joint

Associated Bones/Structures

Movements Possible

Acromioclavicular

Glenohumeral

Humeroradial

Proximal radio-ulnar

Distal radio-ulnar

Radiocarpal

Carpometacarpal

Interphalangeal

Spine & Lower Body Joints

Joint

Associated Bones/Structures

Movements Possible

Atlanto-occipital

Atlanto-axial

Intervertebral

Sacroiliac

Pubic symphysis

Hip

Patellofemoral

Tibiofemoral

Tibiofibular

Ankle

tarsometatarsal

Interphalangeal

Using the provided image (Figure 6.10) of the head determine the fascicle arrangement for each muscle listed below:

  • Sternocleidomastoid (SCM)

Arrangement: ______________

  • Orbicularis oris

Arrangement: _______________

  • Temporalis

Arrangement: _______________

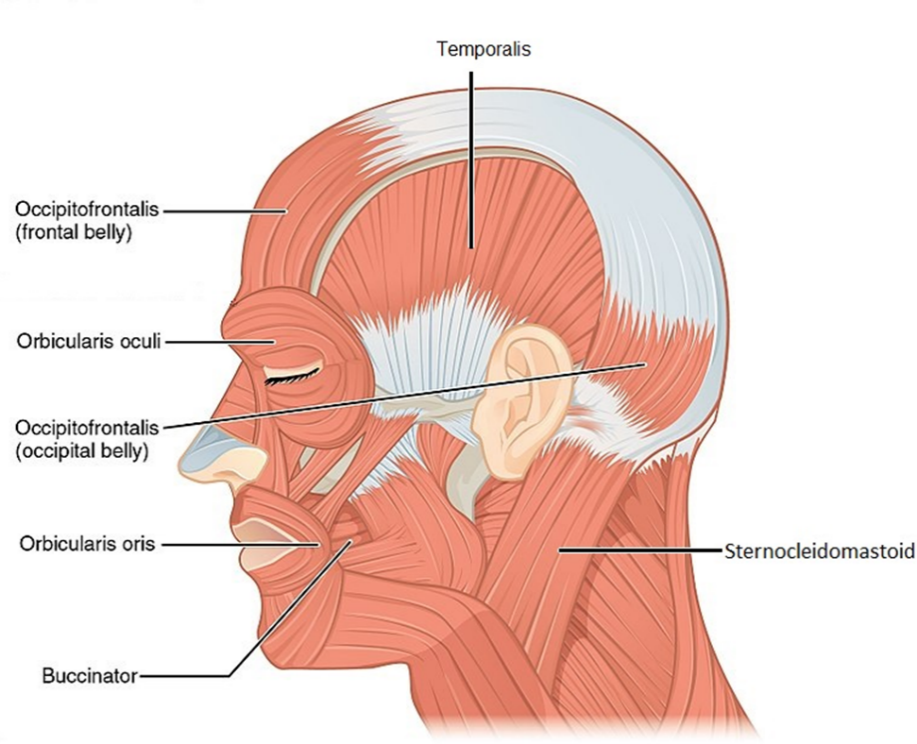

Figure 6.10: Lateral view of facial muscles.

Matching Terms

_____ Sarcolemma

  1. Connetive tissue that surrounding fascicles

_____ Sarcoplasmic reticulum

  1. Connective tissue that covers muscle fibers

_____ Sarcomere

  1. Contrile protein of thick filaments

_____ Perimysium

  1. Plasma membrane of a muscle fiber

_____ Epimysium

  1. Contractile protein of thin filaments

_____ Endomysium

  1. Functional unit of muscle contraction

_____ Actin

  1. Connetive tissue that covers muscles

_____ Myosin

  1. Smooth ER of a muscle fiber and stores calcium

Label the parts of the muscle fiber and a sarcomere.

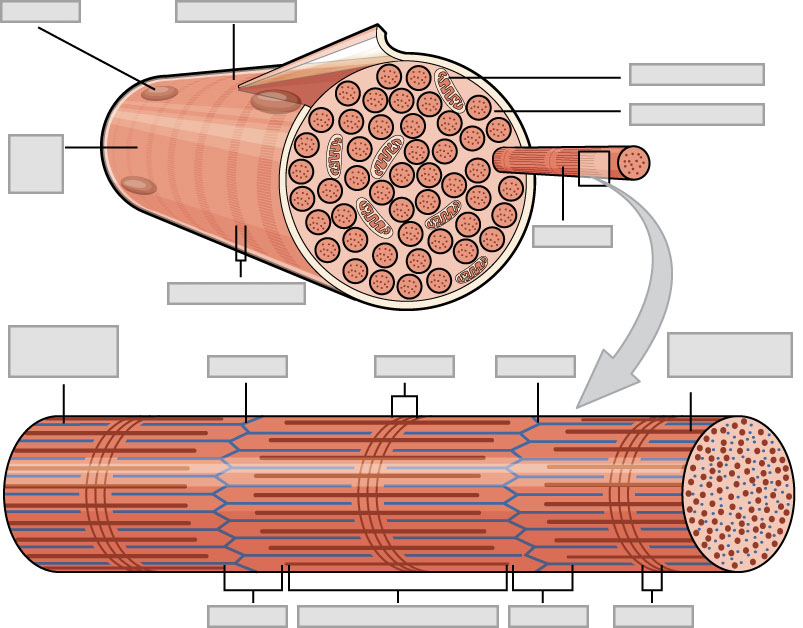

A diagram of an unlabeled muscle fiber and sarcomere with areas indicating the major features that need to be labeled on the image.

Figure 6.11: Muscle fiber and sarcomere.

Label the parts of the sarcomere and different parts of the thick and thin filaments.

Unlabeled diagram of a sarcomere with thick and thin myofilaments. Lines indicate the places where labels are needed to identify the major anatomical features.

Figure 6.12: Thick and think myofilaments.

Post-Lab Critical Thinking Questions

    1. How are skeletal muscle and cardiac muscle similar?
    2. How are skeletal muscle and cardiac muscle different?
    3. How is smooth muscle different from skeletal and cardiac muscle?
    4. Name the joint between the metatarsals and the digits?

a) Metatarsophalangeal b) Intertarsal c) Interphalangeal d) Carpometatarsal

    1. What is the name of the joint between the distal tarsal bones and the metatarsals?
    2. What is the joint between tarsal bones called?

a) Metatarsophalangeal b) Intertarsal c) Interphalangeal d) Carpometatarsal

    1. Name the 3 joints that form the knee. Which bones articulate with the patella?
    2. Name the joint between the metacarpals and the digits?

a) Metacarpalphalangeal b) Hallux c) Interphalangeal d) Carpometacarpal

    1. Name the joint between the phalanges?

a) Metacarpalphalangeal b) Hallux c) Interphalangeal d) Carpometacarpal

    1. What is the joint between two carpal bones called?

a) Carpometacarpal b) Intercarpal c) Interphalangeal d) Radiocarpal

11. What is the name of the joint between the distal carpal bones and the metacarpals?

a) Carpometacarpal b) Intercarpal c) Interphalangeal d) Radiocarpal joint

12. List the typical characteristics of synovial joints.
